Curtain Wall Sealant Production Line

Looking for a professional curtain wall sealant production line manufacturer?

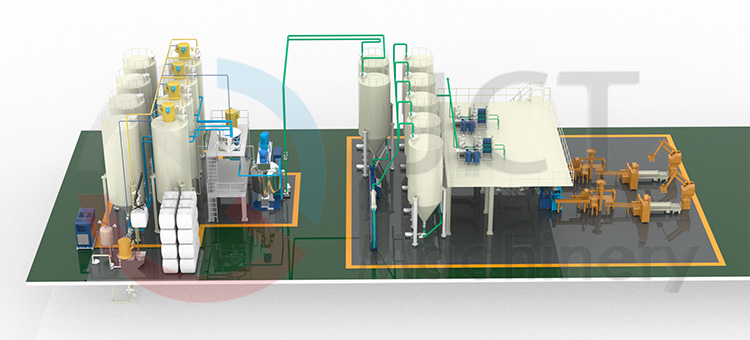

We not only supply high-torque double planetary mixers and hydraulic discharge equipment, but also provide mature process formulas, plant layout planning, on-site installation and commissioning, and a complete set of operation tutorials to help you quickly establish an efficient and stable curtain wall sealant factory.

Schedule a free trial production run for the equipment or contact an engineer to customize a curtain wall adhesive production line: +86-181 3837 3963 (Whatsapp, Wechat) or jctben@mixmachinery.com.

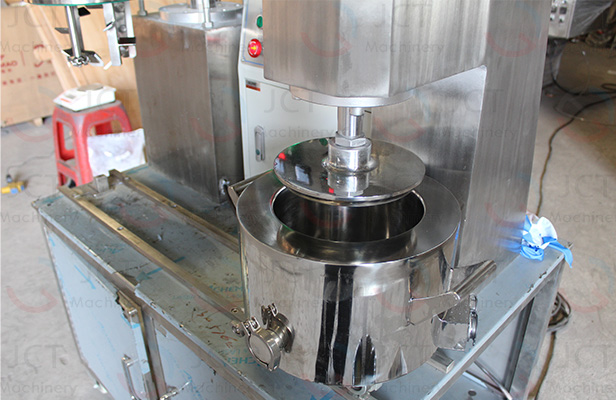

Curtain Wall Sealant Production Line Equipment

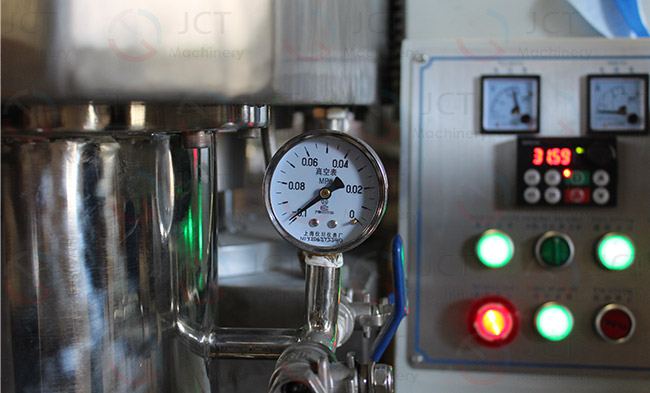

Why is double planetary mixer the preferred choice for curtain wall sealant?

Curtain wall sealant typically have a viscosity far exceeding that of ordinary coatings and contain a large amount of silica reinforcing filler.

• Planetary revolution and rotation: Two agitator blades revolve around the center of the tank while simultaneously rotating at high speed on their own axes. This trajectory ensures that the material, even at extremely high viscosity, undergoes intense tearing and cross-movement.
• Low-gap shearing: The gaps between the blades and the tank wall, and between blades themselves, are typically controlled at 3-5mm. Strong mechanical shearing thoroughly disperses the silica, eliminating any graininess.
• Vacuum-sealed polymerization: Curtain wall sealant cures upon contact with moisture in the air; therefore, the entire mixing process must be conducted under a high vacuum above -0.098 MPa, simultaneously removing trace amounts of moisture and air bubbles from the material.

Curtain Wall Sealant Formula

Curtain Wall Sealant Production Line FAQ

1. What if the material heats up too quickly during production, causing premature solidification?

Our double planetary mixer is equipped with a precision cold water jacket, and in conjunction with a PT100 temperature sensor inside the mixer, it responds to the exothermic curve in real time, ensuring that the material temperature remains within a safe range below 50°C.

2. Is cleaning troublesome when changing production batches?

The inner wall of the mixer is mirror-polished with Ra < 0.4μm. During discharge, the scraper of the hydraulic press can remove more than 98% of the residue on the inner wall, greatly reducing the frequency of cleaning and material loss.

3. How to choose between double planetary mixer and sigma mixer?

Sigma mixer is suitable for mixing ultra-high viscosity "block" materials (such as raw rubber); while double planetary mixer is more suitable for fluid-like materials with extremely high requirements for dispersion fineness and degassing, such as curtain wall adhesives and electronic adhesives.
