Reactor For Producing Solid Glue Stick

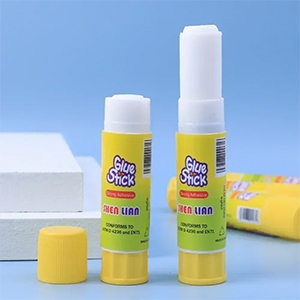

What is solid glue?

Solid glue is an environmentally friendly adhesive made primarily from polyvinyl alcohol (PVA), supplemented with rosin, tackifying resins, fillers adn preservatives. It is dissolved by heating, mixed, and then cooled to form. It typically comes in the form of glue sticks and appears as a translucent or white solid.

Main Functions of Reactor for Producing Solid Glue Stick

Reactor is used to heat, dissolve, react and mix the raw materials for solid glue (such as PVA, rosin, tackifying resin, fillers, additives, etc.) under specific temperature and stirring conditions, ultimately producing a uniform glue solution. This solution is then cooled and formed into solid glue sticks.

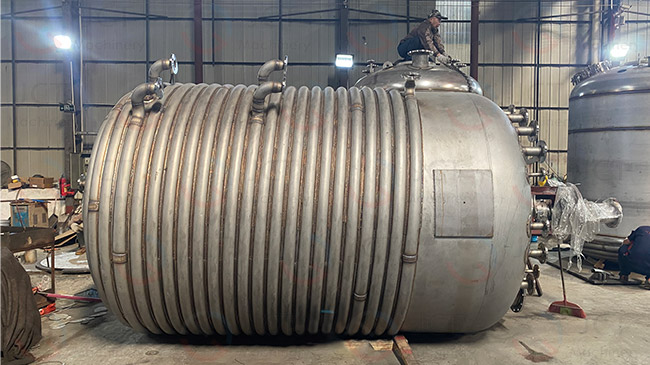

Solid Glue Stick Reactor Structure and Configuration

• Material: Mostly SS304/316 for corrosion resistance and cleanliness.
• Heating method: Electric, steam or thermal oil heating to ensure complete dissolution of materials such as PVA.
• Agitator: Anchor or frame agitator with scraper to prevent material sticking to the wall and localized overheating.
• Temperature control system: Equipped with a temperature sensor and automatic temperature control to ensure stable reaction temperature.
• Cooling system: After the reaction is complete, the material can be rapidly cooled via a jacket or coil to prepare for curing and molding.
• Discharge method: Bottom valve discharge or pump discharge for convenient entry into molding equipment (such as molds or extruders).

Reactor for producing solid glue stick not only serves as a heating and dissolving device but also as a core device for reaction and mixing, directly impacting the solid glue stick's quality (transparency, viscosity, and bond strength). Established in 2006, JCT's engineers have over 20 years of experience in reactor manufacturing. We can provide complete solid glue stick production line turnkey projects.

Market Demand for Solid Glue Stick

1. Steady growth in demand in the education industry

Solid glue sticks are used in large quantities for school stationery and children's crafts.

The global expansion of educational resources (particularly in Southeast Asia, South America and Africa) is driving glue stick consumption.

2. Indispensable demand for office supplies

Demand for office documents, labels, and adhesive seals is stable.

With the increasing use of solid glue sticks in small and medium-sized enterprises and individual offices, solid glue stick consumption remains stable.

3. Replacing liquid and solvent-based glue

Solid glue sticks are environmentally friendly and non-toxic, gradually replacing solvent-based glue.

Market demand continues to grow in countries with strict environmental regulations.
