What Equipment Is Used In Different Adhesive Production Lines?

JCT professional manufactur reactor, sigma mixer, triple shaft mixer and double planetary, we can also provide various adhesives production line turnkey projects. Feel free to contact us for more information: +86-181 3837 3963 (Whatsapp, Wechat) or jctben@mixmachinery.com.

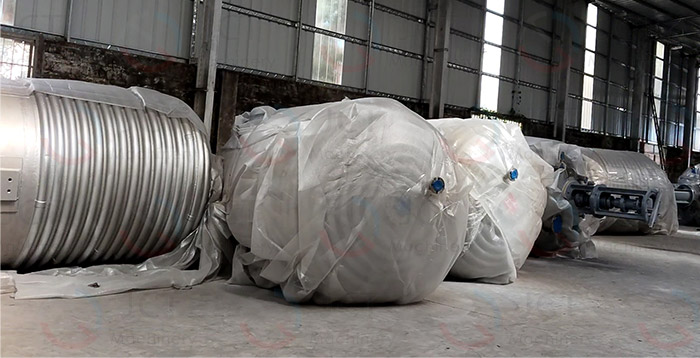

Reactor

Application:

Suitable for liquid adhesives, resins, emulsions and other systems, such as:

• PVAc white latex, PVA glue
• acrylic resin, epoxy resin, phenolic resin
• water-based pressure sensitive adhesive (BOPP), nail free glue

Main function:

• Heating, cooling and heat preservation for reactions.
• Material mixing, dispersion and polymerization.
• Can be equipped with condensation reflux, vacuum dehydration, and automatic metering systems.

Advantages:

• Precise temperature control, suitable for reactive adhesives.
• High degree of automation, enabling continuous production.

Limitations:

• Not suitable for high-viscosity, paste-like or high-solids colloidal materials.

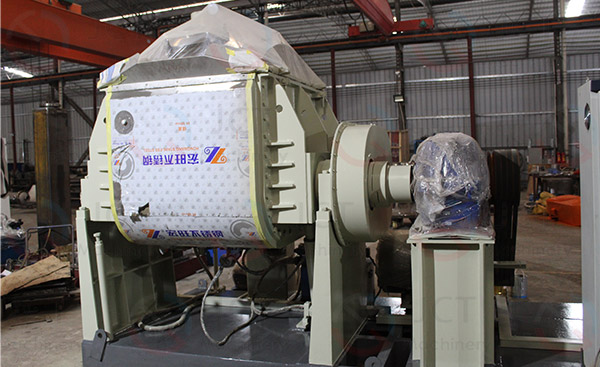

Sigma Mixer

Applications:

Suitable for producing high-viscosity, high-solids, paste- or block-like hot melt glue, such as:

• hot melt glue
• butyl glue
• rubber-based adhesives, silicone rubber

Working principle:

Double ∑-shaped blades vigorously knead and shear the materials within a closed chamber, achieving a uniform blend of solids and liquids.

Advantages:

• Strong mixing power for high-viscosity materials.
• Optional vacuum, heating and cooling systems.
• Flexible discharge methods (hydraulic dump, screw discharge, etc.)

Limitations:

• Not suitable for low-viscosity or free-flowing materials.
• Mixing uniformity is affected by material flowability.

Triple Shaft Mixer

Applications:

Suitable for medium-to-high viscosity liquid adhesives and filler systems, such as:

• epoxy adhesive, silicone sealant
• acrylic adhesive, electronic potting compounds
• highly filler sealant, thermally conductive adhesive

Structural features:

• "山"-shaped blade provide low-speed mixing and circulation.
• Dispersing discs and butterfly blades for shearing and dispersing fillers.
• Optional vacuum system for deaeration.

Advantages:

• Combines shearing, stirring and dispersing functions.
• Suitable for the production of colloids with large viscosity variations.
• Uniform mixing and fine dispersion.

Limitations:

• Complex structure and slightly higher maintenance costs.
• Not as effective as sigma mixer for extrumely high viscosity materials (>1,000,000cps).

Double Planetary Mixer

Applications:

Widely used in the production of high-viscosity, medium-to-high-solids adhesive and sealant, such as:

• silicone sealant
• PU glue, MS glue, photovoltaic adhesive
• viscous slurry

Working principle:

Double planetary blades orbit and rotate synchronously, ensuring seamless material circulation within the cylinder. Can be equipped with dispersing disc.

Advantages:

• Highly uniform mixing, zero dead zones.
• Capable of handling extremely high-viscosity materials (>2.000.000cps).
• Optional vacuum, heating and cooling systems.
• High degree of automation, easy cleaning and maintenance.

Limitations:

• Higher cost.
• May over-mix low-viscosity colloids.

If you're producing liquid reactive adhesives (such as PVA or acrylic), choose reactor.

If you're producing high-viscosity hot melt adhesives or sealants, choose sigma mixer or double planetary mixer.

If you're looking for both dispersing and mixing, choose triple shaft mixer.
