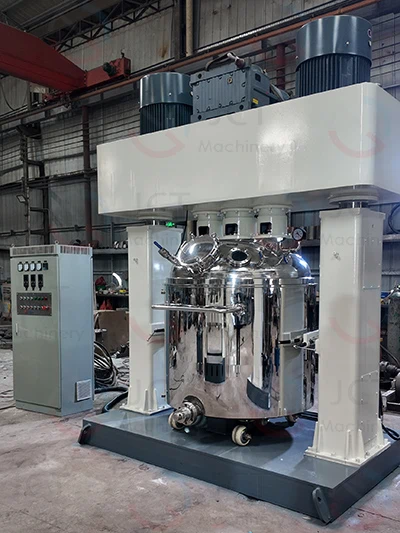

Why Is Triple Shaft Mixer Suitable For Adhesive Production?

During the production of adhesives, resins, fillers, pigments, and various functional additives require thorough mixing and uniform dispersion. Standard mixing equipment may struggle to meet production requirements, particularly for adhesives characterized by high viscosity, high solids content, and significant amounts of powdered fillers.

For which types of adhesives is the triple shaft mixer suitable?

Triple shaft mixer features excellent mixing, dispersing, and shearing capabilities and can be used in the production of various adhesives, such as:

• Epoxy adhesive
• Electronic potting compound
• Structural adhesive
• Industrial adhesive
• High-viscosity sealant
• Silicone sealant
• Filled adhesive
• Other high-viscosity resin adhesive

Advantages of Triple Shaft Mixer

1. Multi-axis collaboration enhances mixing efficiency for high-viscosity materials

The viscosity of adhrsives typically increases significantly upon the addition of large amounts of fillers. Relying on a single mixing mechanism alone can limit material circulation and mixing effectiveness.

By utilizing multiple mixing mechanisms that work in concert, triple shaft mixer promotes internal material circulation and ensures thorough contact betweem the resin, fillers, and additives, thereby boosting overall mixing efficiency.

This multi-axis mixing approach is better suited to the rheological properties of high-viscosity adhesives.

2. High-intensity dispersion to address powder agglomeration

Many adhesive formulations require the addtion of powdered fillers such as calcium carbonate, silica, alumina, and titanium dioxide.

If these powders are not adequately dispersed, issues such as agglomeration, the formulation of granules, and uneven local concentrations can arise during production, thereby compromising the adhesive's performance.

Equipped with a high-speed dispersion mechanism, triple shaft mixer generates strong shear forces, facilitating the rapid wetting and dispersion of powders into the resin system.

Proper control of dispersion speed and processing time enhances the uniformity of the adhesive system.

3. Suitable for high-solid-content, high-viscosity adhesives

For high-solid-content adhesives, the viscosity of the system rises as the concentration of powders and functional fillers increases.

By synergistically combining mixing, dispersing, and shearing actions, triple shaft mixer enhances material circulation, making it better suited for processing high-viscosity, high-solid-content adhesives.

Therefore, when selecting production equipment for adhesives, one must comprehensively consider factors such as product viscosity, solid content, filler type, and the production process, rather than basing the choice solely on equipment volume.

4. Improving the uniformity of the adhesive system

The final performance of an adhesive is closely linked to the dispersion and mixing state of its raw materials.

Uneven distribution of resins, fillers, pigments, and additives can lead to variations in product viscosity, appearance, curing characteristics, and bonding performance.

Through continuous mixing and dispersion, triple shaft mixer ensures a more uniform distribution of various components throughout the material system, thereby helping to improve batch-to-batch consistency.

5. Vacuum system configuration available upon request

Certain adhesives—particularly electronic potting compounds, epoxy adhesive, and high-performance structural adhesives—are sensitive to the presence of air bubbles in thefinished product.

For such products, triple shaft mixer can be equipped with a vacuum system tailored to the production process; this enables vacuum degassing during mixing, thereby minimizing residual air bubbles within the material.

For adhesive products requiring high density and superior surface quality, vacuum mixing and degassing can serve as a critical step in the production process.

JCT Machinery — Manufacturer of Triple Shaft Mixers

As a manufacturer of triple shaft mixer, JCT offers not only standalone units but also comprehensive equipment solutions tailored to your specific product formulations, production processes, and target capacities—covering everything from raw material handling, mixing and dispersion, and vacuum degassing to finished product packaging.

For clients planning to build new adhesive production facilities or upgrade existing lines, we provide specialized production line equipment and turnkey project services customized to your specific requirements.

If you are looking for triple shaft mixer suitable for high-viscosity adhesives, epoxy adhesives, structural adhesives, or electronic potting compounds, please contact us to discuss a solution tailored to your production process.
