Butyl Glue Production Line

Butyl Glue Production Line Main Product Types

Product	Application
Butyl glue stick	First sealing of insulating glass, roof waterproofing
Butyl glue tape	Cable sealing, car light sealing, self-adhesive membrane
Butyl glue paste	Building caulking, waterproof sealing
Hot melt butyl glue	Roofing membrane, self-adhesive

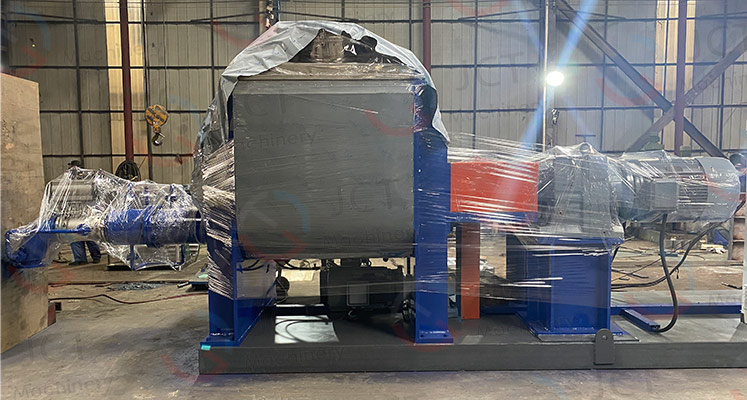

sigma mixer

Metering and batching system: Accurately weigh raw materials (butyl rubber, tackifying resin, oil, filler, etc.) to ensure stable ratio.
Sigma mixer: Main mixing equipment, for shearing, stirring, kneading and mixing high viscosity materials, generally using screw discharge.
Heating system: Control the kneading temperature to help the rubber and other raw materials mix evenly. Temperature range: 80-140℃.
Vacuum system: Degassing the rubber material to improve the density and quality of butyl glue.
Screw extruder: The glue compound is continuously extruded adn formed, ready to enter the cooling or pressing section. The die shape can be adjusted to control the width and thickness of the glue strip.
Cooling system (cooling belt/water cooling platform): Cooling and shaping to facilitate subsequent cutting or curling.
Strip cutter/slitter: Cut the cooled butyl glue into specified length or width. Suitable for butyl glue stick or tape.

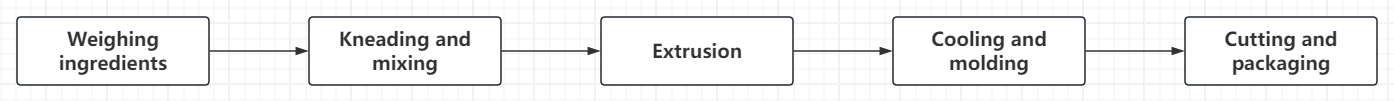

butyl glue production flow

Application	Recommendation
Insulating glass sealing	Increase the proportion of butyl rubber to enhance air tightness and aging resistance
Self-adhesive tape	Increase the content of polyisobutylene to improve flexibility and initial adhesion
Waterproof roll overlap sealing	Increase the content of petroleum resin to improve adhesion
Automative headlights/interior sealing	Add polymer modifiers to improve low-temperature flexibility and environmental protection performance
