Rebar Glue Production Line

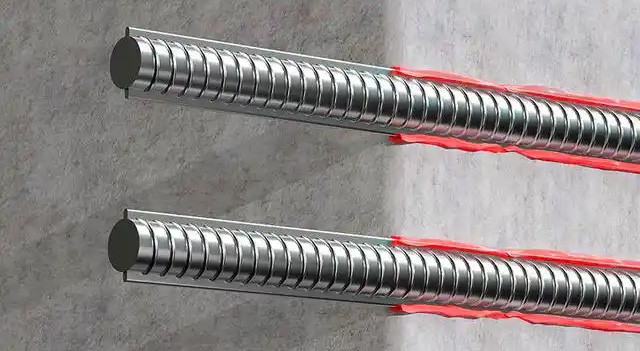

What Is Rebar Glue?

Rebar glue, also known as chemical anchor glue, structural glue, and steel anchoring agent, is a two-component reactive epoxy or modified resin adhesive, commonly used in engineering fields such as reinforcement of steel bars in concrete, curtain wall anchoring, and anchor bolt fixing. It has the characteristics of high strength, aging resistance, acid and alkali resistance, and rapid curing.

Main Types Of Rebar Glue

• Epoxy rebar glue (two components A and B)
• Modified epoxy acrylic rebar glue
• Vinyl ester rebar glue (high performance)
• Methacrylate quick-drying rebar glue

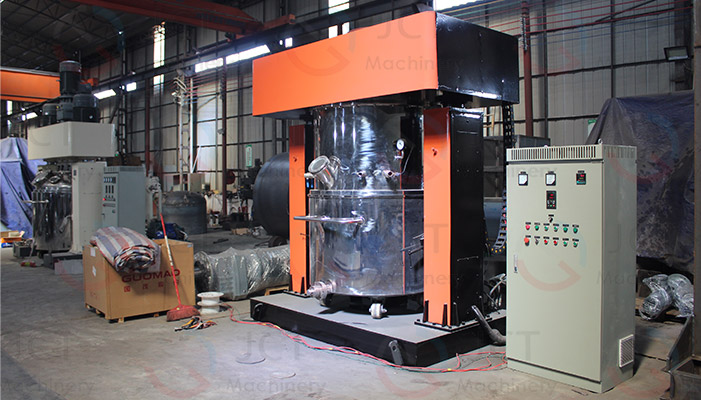

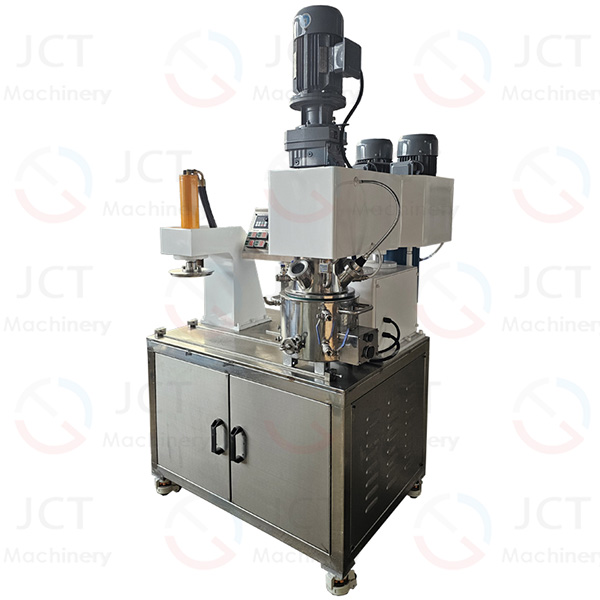

Double planetary mixer Is one of the main equipments in rebar glue production line.

Advantages Of JCT Double Planetary Mixer

1. For high viscosity systems (such as component A), strong shear + scraping wall design is configured.
2. Integrated vacuum degassing, temperature control, and constant speed filling systems to ensure stable product performance.
3. Customizable 5L-2500L laboratory/industrial production line solutions.
4. Support customers to start from scratch, including formula suggestions, personnel training, installation and commissioning.
5. Has been exported to many countries and serves many customers in the construction chemical industry.

Rebar Glue Production Process

Rebar Glue Production Line Equipment Configuration

1. Automatic metering system: Weighing accuracy ±0.2%, supports precise ratio of epoxy resin/curing agent/filler.
2. Double planetary mixer: Volume 5-2500L, blade speed adjustable, with vacuum system.
3. Combined grinding system: High shear dispersion (3000rpm), then three grinding (fineness ≤30μm).
4. Two-component metering filling machine: Adjustable mixing ratio 2:1~4:1, accuracy +0.5%, production capacity 200-500 pieces/hour.
5. Online viscosity tester: Real-time monitoring of viscosity (range 5000-50,000cP), automatic alarm for abnormalities.

Why Choose Double Planetary Mixer?
