Tile Adhesive Production Line

Tile Adhesive Production Line Equipment

Equipment	Function
Raw material storage tank	Used for the bulk storage of basic raw materials such as cement and sand; some units feature integrated humidity control systems to suit various climatic conditions
Screw conveyor / Bucket elevator	Smoothly conveying materials from the storage hopper to the next proces—preventing blockages—via horizontal or vertical transport
Automatic metering equipment (hopper scales, load cells, etc.)	Automatically weighs and batches bulk raw materials and trace additives with high precision according to preset formulas, ensuring consistent product quality
Dry-mix mortar mixer (twin-shaft zero-gravity mixer / horizontal ribbon mixer)	Uniformly mixes various raw materials in a short time, ensuring no dead zones or segregation; some modles are equipped with high-speed cutting blades to disperse fibrous materials
Dust collection / removal equipment (e.g., pulse-jet bag filter)	Installed at locations prone to dust generation (such as the tops of storage silos, elevator inlets, and packaging machines) to capture dust, ensure environmental compliance, and safeguard employee health
Automatic packaging machine (for valve bags, open-mouth bags, or ultraspnic packaging)	Packages finished products into bags; valve bags offer high packaging speeds and do not require sewing

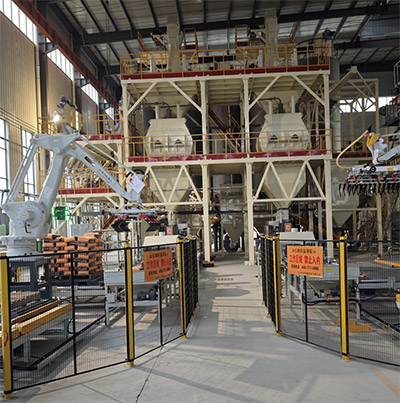

automatic tile adhesive production line installed in customer factory

Technical Advantages of Tile Adhesive Production Line

1. Highly wear-resistant materials and low maintenance costs

To withstand the highly abrasive nature of aggregate sand, the mixer blades are constructed from wear-resistant high-manganese steel or high-chromium alloy. They feature an independent, detachable, and angle-adjustable design, extending their service life by 3 to 5 times compared to standard steel components.

2. Eco-friendly, dust-free design

The entire tile adhesive production line utilizes a fully enclosed, negative-pressure design. Intelligent pulse-jet bag dust collectors are installed at critical dust-generating points, such as weighing hoppers, mixers, and packaging machines. Achieving a dust recovery rate of 99.9%, the system automatically recycles collected dust for reuse, ensuring green and compliant production.

3. Proprietary PLC central control system

The system employs industrial microcomputer-based central control, featuring an intuitive dynamic process visualization dashboard. It supports the one-touch recall and locking of hundreds of formulas and includes functions for automatic production statistics, fault self-diagnosis, data protection during power outages, and remote troubleshooting and maintenance.

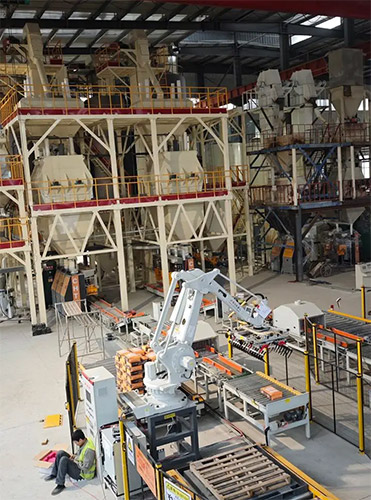

comprehensive solution for fully automated tile adhesive production line - JCT Machinery

Why Choose JCT's Tile Adhesive Production Line Turnkey Project?

As a professional manufacturer of mechanical equipment, we provide not only durable machinery but also long-term business value:

Customized solution design: Our engineers provide one-on-one 3D layout planning tailored to your facility's height, dimensions, and the characteristics of local raw materials.
Turnkey service: We offer a comprehensive, one-stop delivery process—covering everything from facility layout planning and equipment manufacturing to on-site installation, commissioning, and operator training.
Process and formulation support: Beyond our expertise in machinery, we are deeply familiar with the production processes for specialty mortars. We assist with initial production trials and the fine-tuning of process parameters.

If you are planning or upgrading your tile adhesive project, please feel free to contact us: +86-181 3837 3963 (Whatsapp, Wechat), jctben@mixmachinery.com.
